NetApp Simulator on VMware vSphere

The Flackbox blog has an updated ‘How to Build a NetApp ONTAP 9 Lab’ PDF guide which covers the latest version of ONTAP’

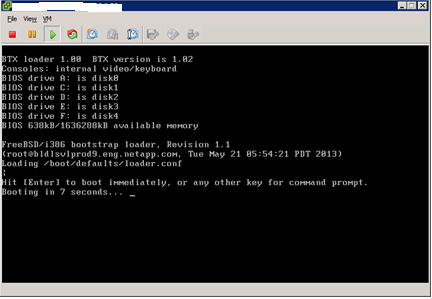

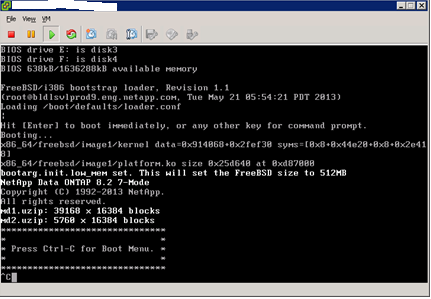

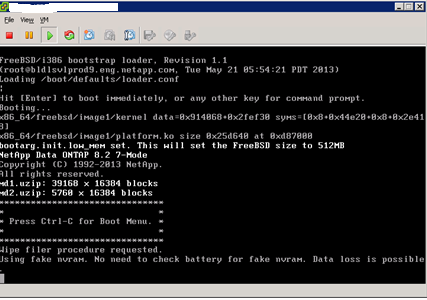

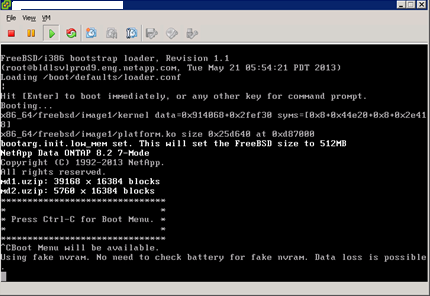

Press Ctrl + C to enter Boot Menu

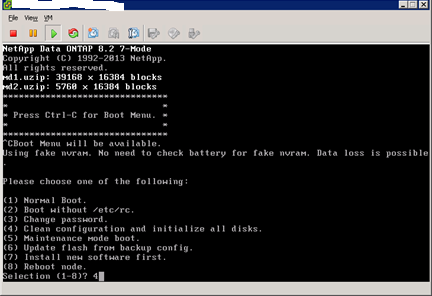

Select Option 4 – Clean Configuration and initialize all disks

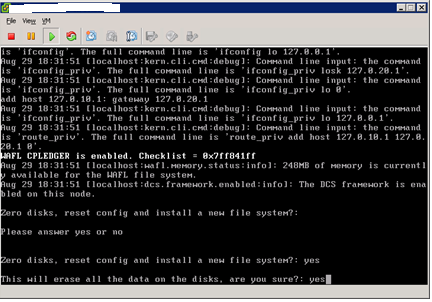

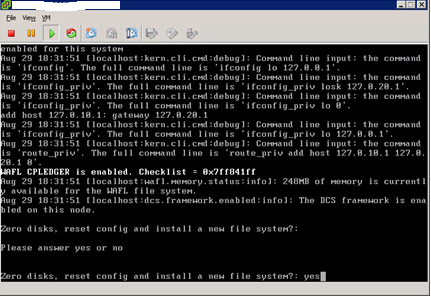

For Zero disks, reset config and install a new file system? : Yes
It will confirm with following message

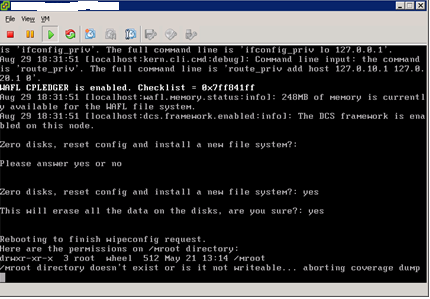

This will erase all the data on disks are you sure ? : Yes

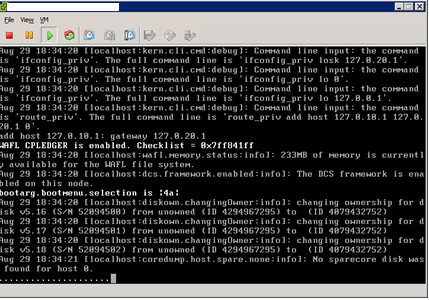

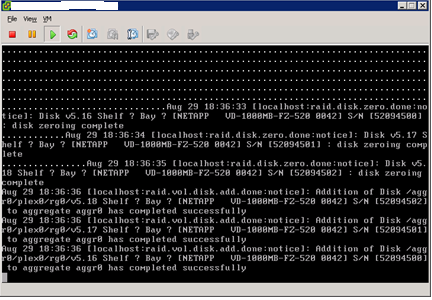

It will reboot the Virtual Machine

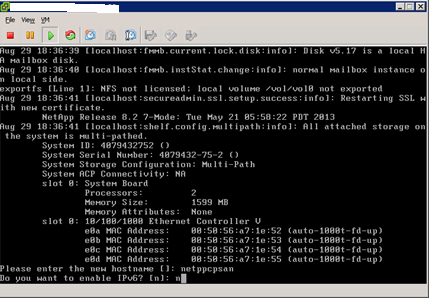

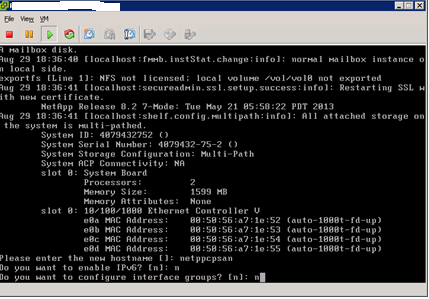

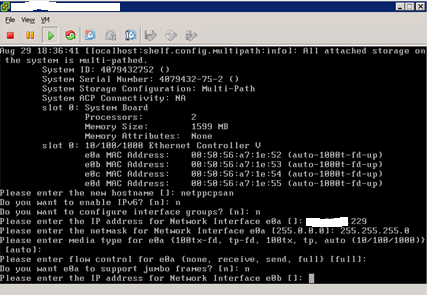

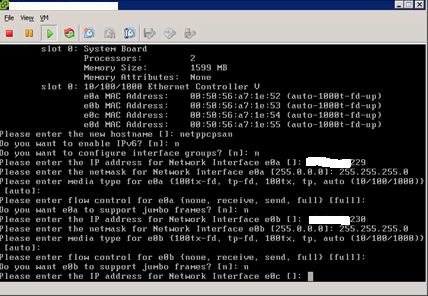

Specify the host name
Select if you want to enable Ipv6 :- N is default
Configure Interface Groups if you require: Default is No

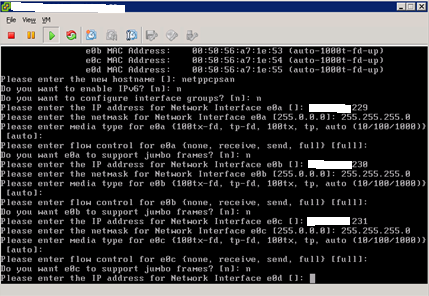

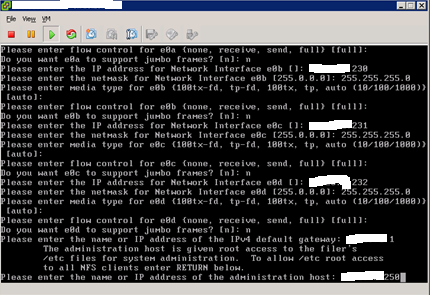

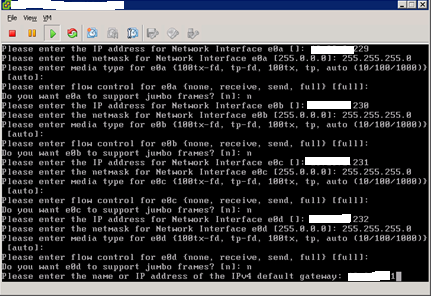

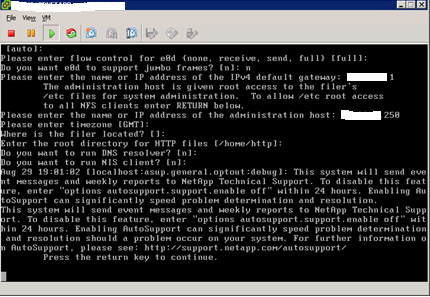

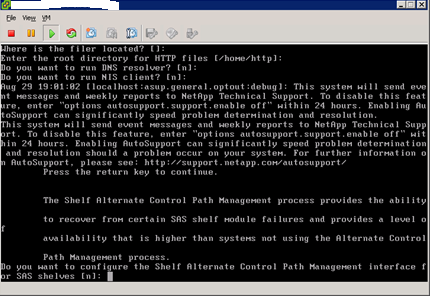

In below sections you will need to configure IP Address of Ethernet Interface. By default there are 4 NICs to be Management Connectivity and 2 for Cluster

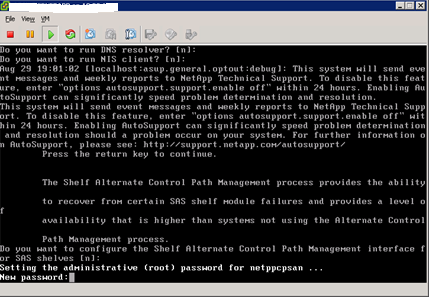

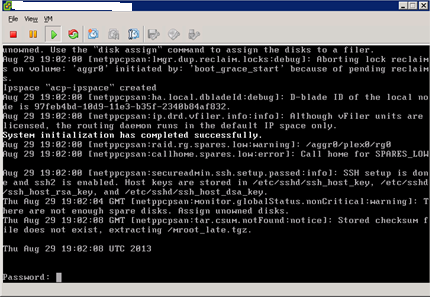

Specify the new password for the root account

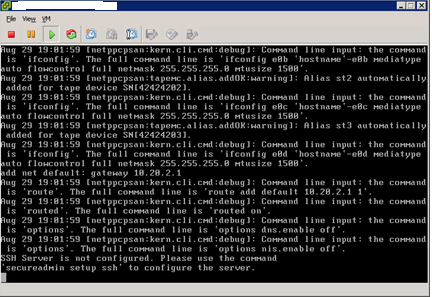

I rebooted however it is not mandatory. Filer should be accessible

Next Steps include

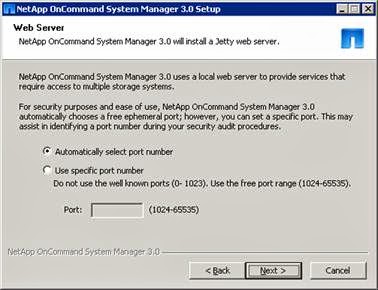

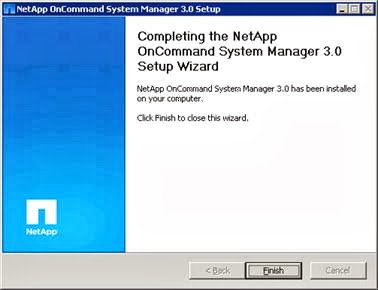

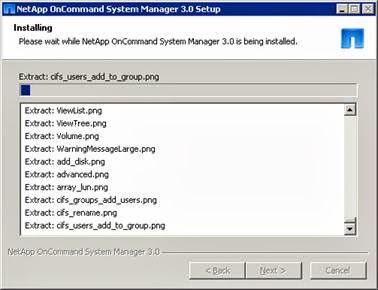

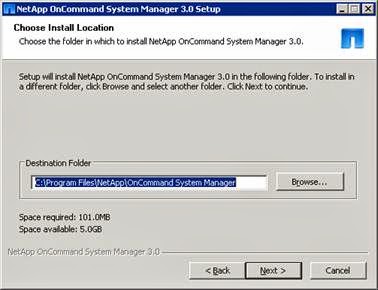

Installing ONTAP Systems Manager software to access the NetApp SAN

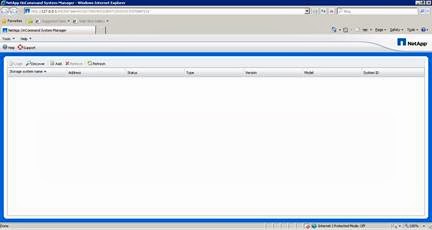

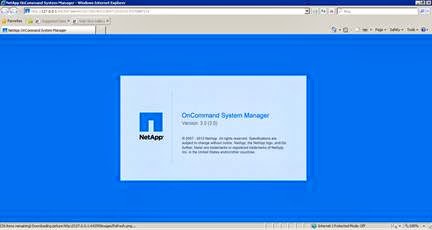

Open it from Start –> All Program

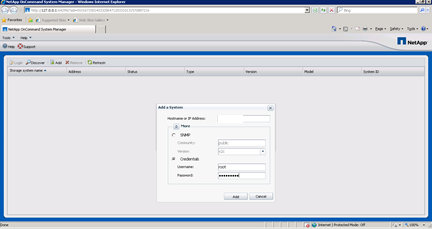

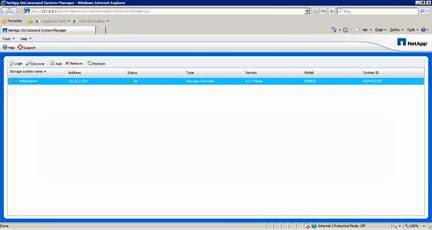

Click Add to add storage systems

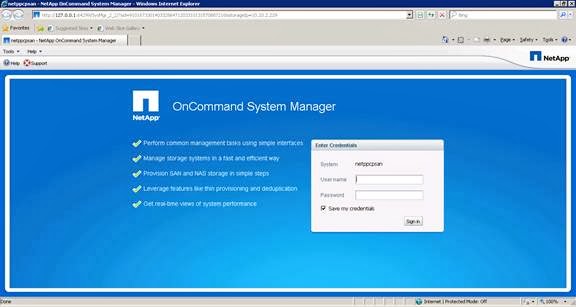

Click Login which will initiate connection to Storage System

In Next post I will include following
  • Disk Assignment
  • iSCSI Configuration
  • Volume / LUN Creation
  • LUN Mapping to Initiator Groups
  • Snap Mirror Relationship
  • SRM specific configuration
